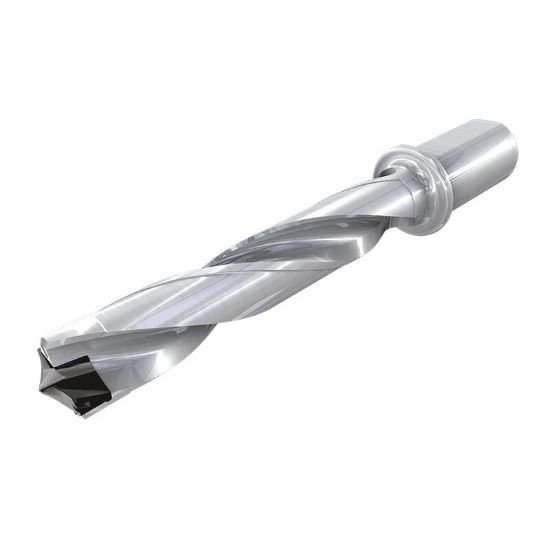

Picture of Iscar DFine 1378-413-125A-3D-IQ 1.378" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Iscar DFine 1378-413-125A-3D-IQ 1.378" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Part Number: ISC3260213 ISO: DFN 1378-413-125A-3D-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112046
Vendor: Sussex Tool and Supply
$625.78
ISCAR 3260213 1.378" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 8.7300 221.74MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.3780 35.00MM
Type Of Tool Drill
Flute Length 4.1300 104.90MM
Cut Dia Min 1.3780 35.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.4130 35.89MM
