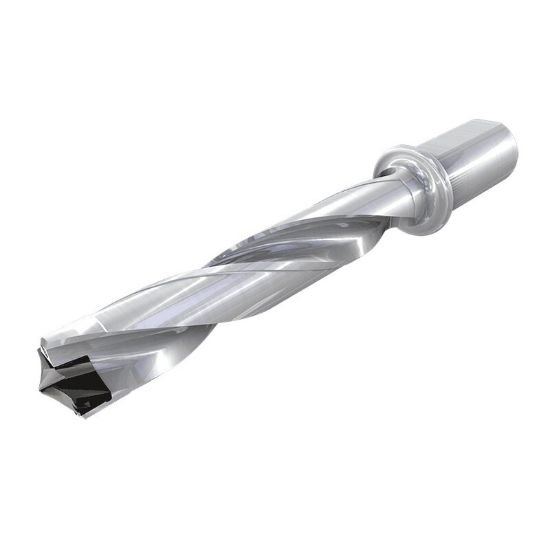

Picture of Iscar DFine 1299-389-125A-3D-IQ 1.299" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Iscar DFine 1299-389-125A-3D-IQ 1.299" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Part Number: ISC3260211 ISO: DFN 1299-389-125A-3D-IQ
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112044
Vendor: Sussex Tool and Supply
$667.49

Description

ISCAR 3260211 1.299" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 8.3800 212.85MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.2992 33.00MM
Flute Length 3.8900 98.81MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 1.2992 33.00MM
Cut Dia Max 1.3350 33.91MM
Materials & Finish
Tool Material Steel
