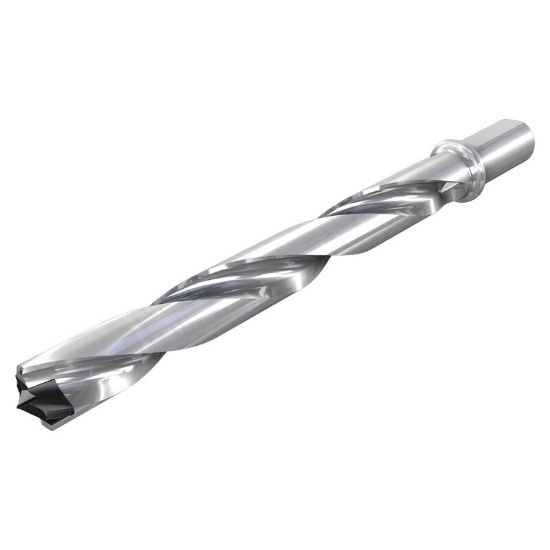

Picture of Iscar DFine 1299-1039-125A-8D-IQ 1.299" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

Iscar DFine 1299-1039-125A-8D-IQ 1.299" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

Part Number: ISC3203596 ISO: DFN 1299-1039-125A-8D-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111966
Vendor: Sussex Tool and Supply
$892.00
ISCAR 3203596 1.299" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 14.2500 361.95MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.2992 33.00MM
Type Of Tool Drill
Flute Length 10.3900 263.91MM
Cut Dia Min 1.2992 33.00MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.3350 33.91MM
