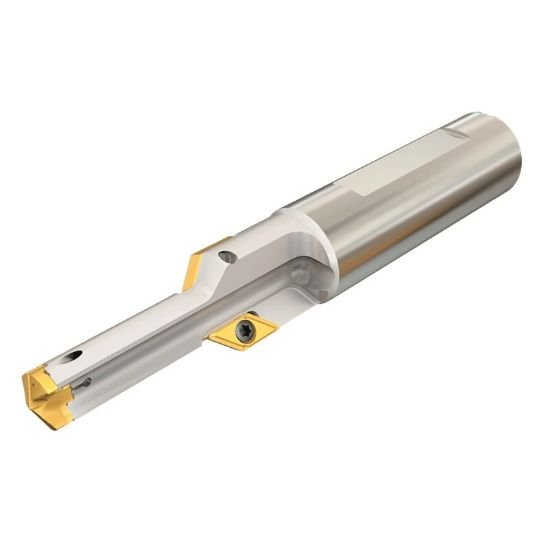

Picture of Iscar DCT 0311-100-063B-3/8UNC 0.352" Indexable Head Drills with Chamfering Inserts Mainly for Pre-Thread Holes

Iscar DCT 0311-100-063B-3/8UNC 0.352" Indexable Head Drills with Chamfering Inserts Mainly for Pre-Thread Holes

Part Number: ISC3200996 ISO: DCT 0311-100-063B-3/8UNC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111407
Vendor: Sussex Tool and Supply
$263.25
ISCAR 3200996 0.352" Indexable Head Drills with Chamfering Inserts Mainly for Pre-Thread Holes Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.7500 95.25MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.3031 7.70MM
Type Of Tool Drill
Flute Length 1.4400 36.58MM
Cut Dia Min 0.3031 7.70MM
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3520 8.94MM
