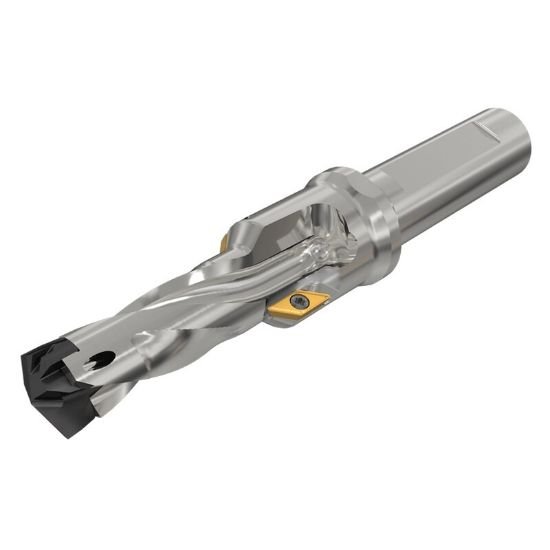

Picture of Iscar DCNT0689-140-075A-3/4UNF 0.669 Indexable Head Drills with Chamfering Inserts Mainly for Pre-Thread Holes

Iscar DCNT0689-140-075A-3/4UNF 0.669 Indexable Head Drills with Chamfering Inserts Mainly for Pre-Thread Holes

Part Number: ISC3203909

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111985
Vendor: Sussex Tool and Supply
$481.00
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Cutter Type Drill
Made In USA No
Cutting Edge Definition Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Tool Material Steel
Machine Side (Toolpost) BBAR0.7500, WELDON0.7500
Machine Side (Toolpost) Connection Type Boring Bar, Weldon
Overall Length 2.7290 69.32MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Family Group Pre-Thread
Coolant Thru Thru Coolant
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 0.6693 17.00MM
Flutes Or Inserts 2
Type of Tool Drill
Flute Length 1.4000 35.56MM
Cut Diameter Min 0.6692 17.00MM
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Diameter Max 0.7050 17.91MM
Second Pocket AOMT 06
