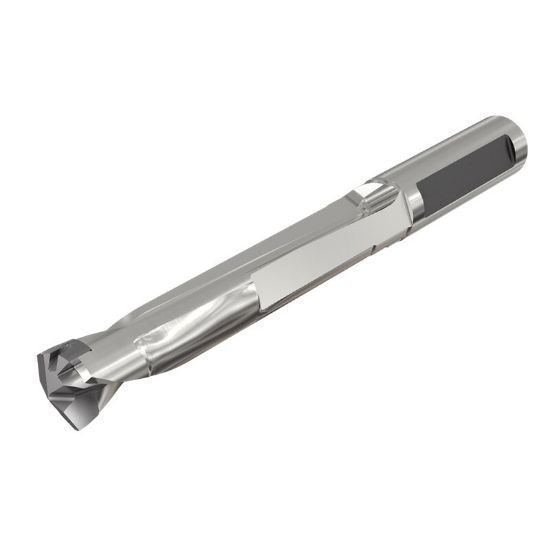

Picture of Iscar DCNS 0945-472-094B-5D 0.945" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Iscar DCNS 0945-472-094B-5D 0.945" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Part Number: ISC3203076 ISO: DCNS 0945-472-094B-5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111829
Vendor: Sussex Tool and Supply
$568.61

Description

ISCAR 3203076 0.945" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 8.2440 209.40MM
Shank/Pilot Dia 0.9449 24.00MM
Flutes/Inserts 2
Tool Dia 0.9449 24.00MM
Flute Length 4.8980 124.41MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.9449 24.00MM
Cut Dia Max 0.9800 24.89MM
Materials & Finish
Tool Material Steel
