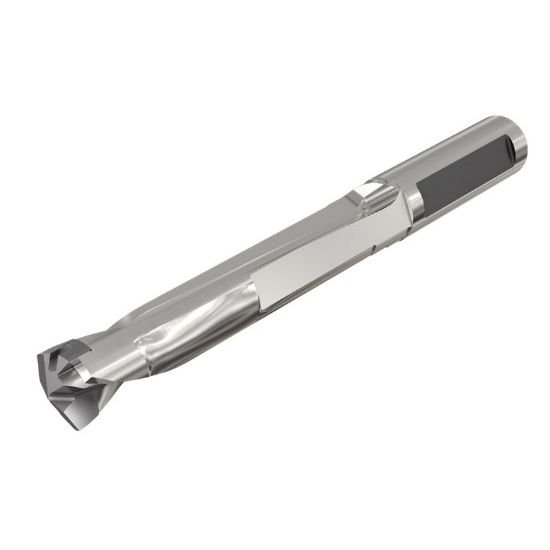

Picture of Iscar DCNS 0787-394-078B-5D 0.787" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Iscar DCNS 0787-394-078B-5D 0.787" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Part Number: ISC3203072 ISO: DCNS 0787-394-078B-5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111825
Vendor: Sussex Tool and Supply
$431.14

Description

ISCAR 3203072 0.787" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 7.1690 182.09MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7874 20.00MM
Flute Length 4.0790 103.61MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.7874 20.00MM
Cut Dia Max 0.8230 20.90MM
Materials & Finish
Tool Material Steel
