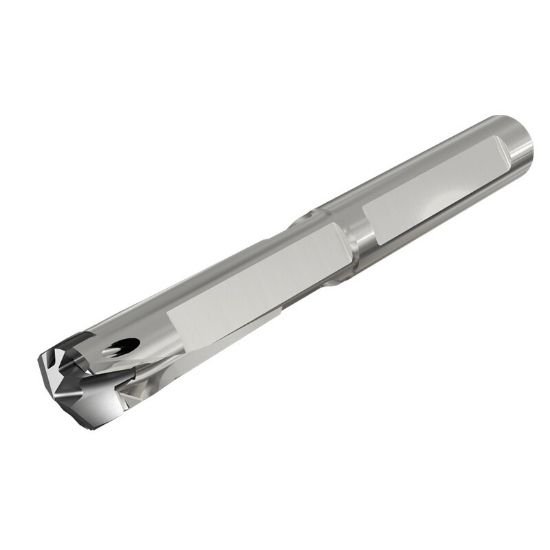

Picture of Iscar DCNS 0630-189-063B-3D 0.63" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3xD, Suitable for Chamfering Holders

Iscar DCNS 0630-189-063B-3D 0.63" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3xD, Suitable for Chamfering Holders

Part Number: ISC3203019 ISO: DCNS 0630-189-063B-3D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111797
Vendor: Sussex Tool and Supply
$282.82

Description

ISCAR 3203019 0.63" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 4.6340 117.70MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.6299 16.00MM
Flute Length 2.0040 50.90MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.6299 16.00MM
Cut Dia Max 0.6650 16.89MM
Materials & Finish
Tool Material Steel
