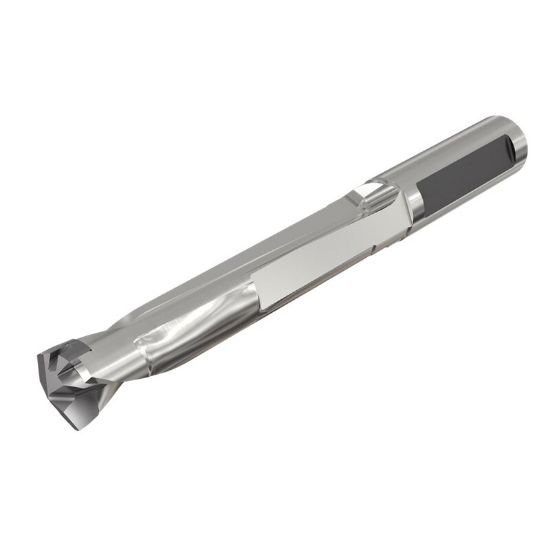

Picture of Iscar DCNS 0591-295-059B-5D 0.591" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Iscar DCNS 0591-295-059B-5D 0.591" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Part Number: ISC3203067 ISO: DCNS 0591-295-059B-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111820
Vendor: Sussex Tool and Supply
$314.29
ISCAR 3203067 0.591" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.5906 15.00MM
Overall Length 5.4210 137.69MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5906 15.00MM
Flutes/Inserts 2
Tool Dia 0.5906 15.00MM
Type Of Tool Drill
Flute Length 3.0590 77.70MM
Cut Dia Min 0.5906 15.00MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.6260 15.90MM
