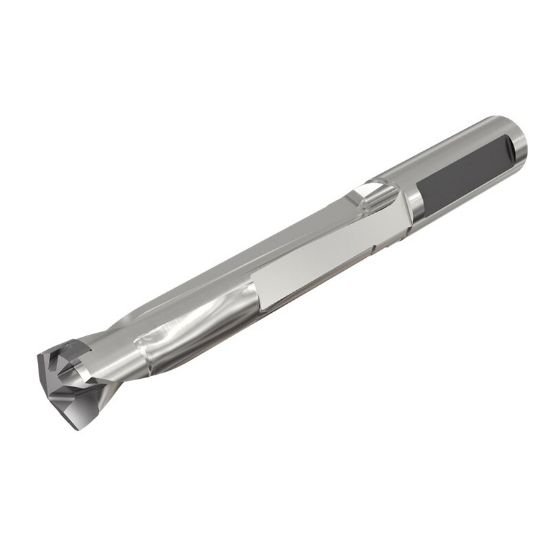

Picture of Iscar DCNS 0571-285-059B-5D 0.571" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Iscar DCNS 0571-285-059B-5D 0.571" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Part Number: ISC3203066 ISO: DCNS 0571-285-059B-5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111819
Vendor: Sussex Tool and Supply
$313.44

Description

ISCAR 3203066 0.571" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 5.3030 134.70MM
Shank/Pilot Dia 0.5906 15.00MM
Flutes/Inserts 2
Tool Dia 0.5709 14.50MM
Flute Length 2.9570 75.11MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.5709 14.50MM
Cut Dia Max 0.5870 14.91MM
Materials & Finish
Tool Material Steel
