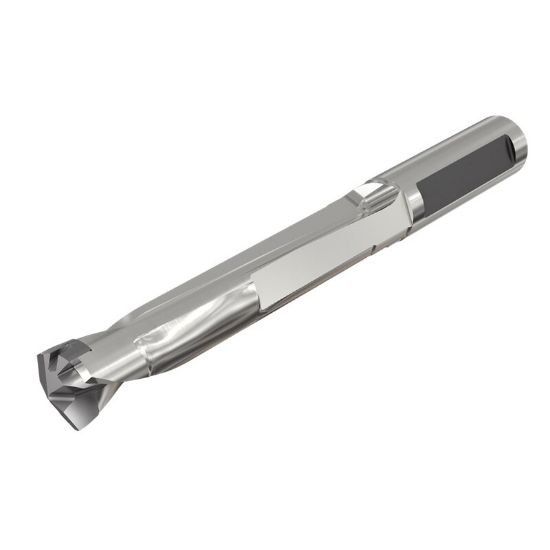

Picture of Iscar DCNS 0512-256-051B-5D 0.512" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Iscar DCNS 0512-256-051B-5D 0.512" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Part Number: ISC3203063 ISO: DCNS 0512-256-051B-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111816
Vendor: Sussex Tool and Supply
$293.85
ISCAR 3203063 0.512" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.5118 13.00MM
Overall Length 5.0630 128.60MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5118 13.00MM
Flutes/Inserts 2
Tool Dia 0.5118 13.00MM
Type Of Tool Drill
Flute Length 2.6540 67.41MM
Cut Dia Min 0.5118 13.00MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5280 13.41MM
