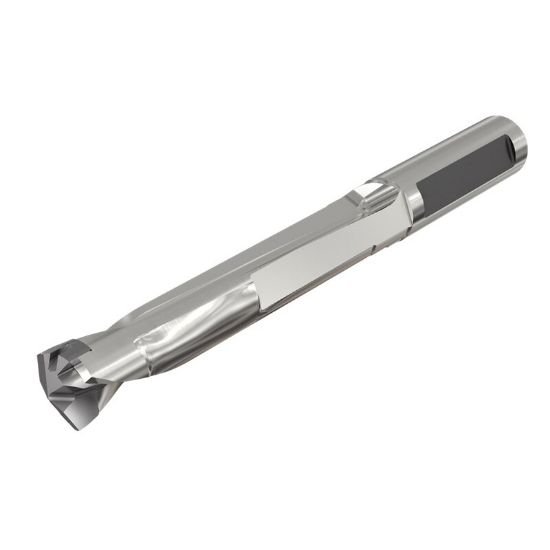

Picture of Iscar DCNS 0492-246-051B-5D 0.492" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Iscar DCNS 0492-246-051B-5D 0.492" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Part Number: ISC3203062 ISO: DCNS 0492-246-051B-5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111815
Vendor: Sussex Tool and Supply
$313.44

Description

ISCAR 3203062 0.492" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 4.9020 124.51MM
Shank/Pilot Dia 0.5118 13.00MM
Flutes/Inserts 2
Tool Dia 0.4921 12.50MM
Flute Length 2.5510 64.80MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.4921 12.50MM
Cut Dia Max 0.5080 12.90MM
Materials & Finish
Tool Material Steel
