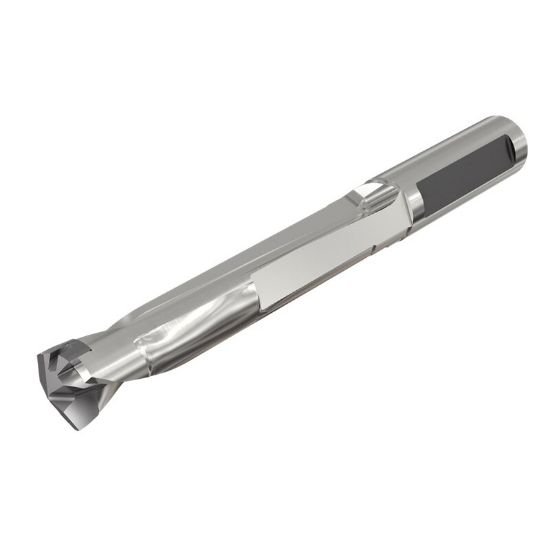

Picture of Iscar DCNS 0472-236-047B-5D 0.472" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Iscar DCNS 0472-236-047B-5D 0.472" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Part Number: ISC3203061 ISO: DCNS 0472-236-047B-5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111814
Vendor: Sussex Tool and Supply
$278.88

Description

ISCAR 3203061 0.472" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 4.6060 116.99MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Flute Length 2.4490 62.20MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.4724 12.00MM
Cut Dia Max 0.4880 12.40MM
Materials & Finish
Tool Material Steel
