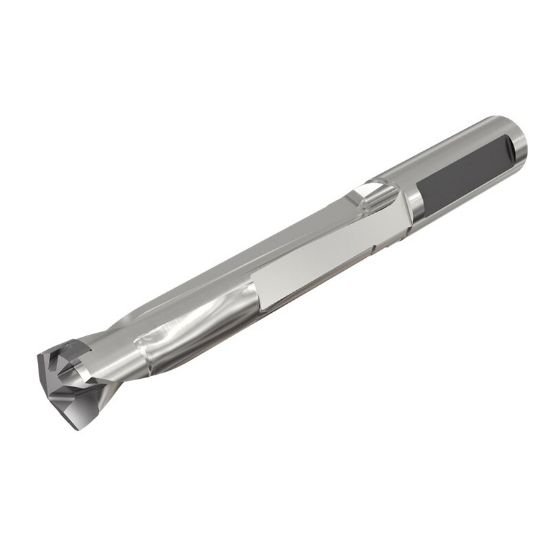

Picture of Iscar DCNS 0453-226-047B-5D 0.453" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Iscar DCNS 0453-226-047B-5D 0.453" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Part Number: ISC3203060 ISO: DCNS 0453-226-047B-5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111813
Vendor: Sussex Tool and Supply
$278.88

Description

ISCAR 3203060 0.453" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 4.4920 114.10MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4528 11.50MM
Flute Length 2.3460 59.59MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.4528 11.50MM
Cut Dia Max 0.4690 11.91MM
Materials & Finish
Tool Material Steel
