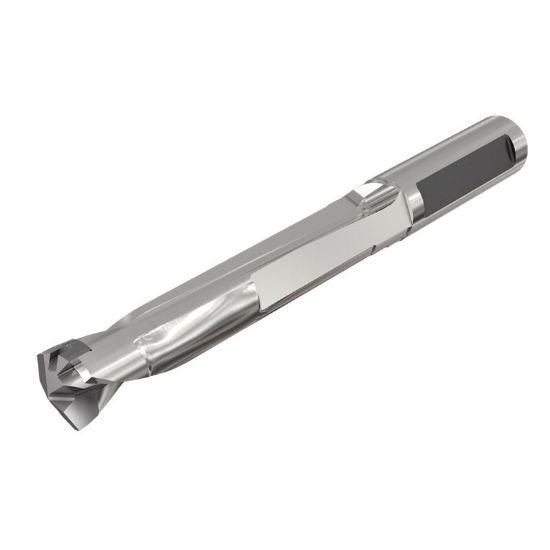

Picture of Iscar DCNS 0433-216-043B-5D 0.433" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Iscar DCNS 0433-216-043B-5D 0.433" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Part Number: ISC3203059 ISO: DCNS 0433-216-043B-5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111812
Vendor: Sussex Tool and Supply
$278.88

Description

ISCAR 3203059 0.433" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 4.3940 111.61MM
Shank/Pilot Dia 0.4330 11.00MM
Flutes/Inserts 2
Tool Dia 0.4331 11.00MM
Flute Length 2.2440 57.00MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.4331 11.00MM
Cut Dia Max 0.4490 11.40MM
Materials & Finish
Tool Material Steel
