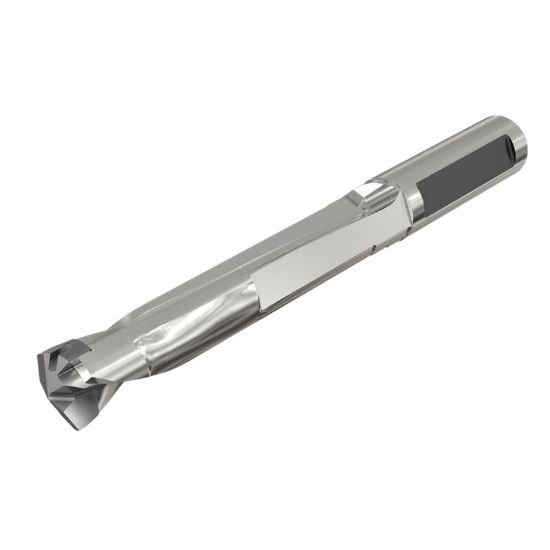

Picture of Iscar DCNS 0295-148-031B-5D 0.295" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Iscar DCNS 0295-148-031B-5D 0.295" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders

Part Number: ISC3260169 ISO: DCNS 0295-148-031B-5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112028
Vendor: Sussex Tool and Supply
$249.22

Description

ISCAR 3260169 0.295" Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.3540 85.19MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2953 7.50MM
Flute Length 1.5320 38.91MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.2953 7.50MM - M
Cut Dia Max 0.3110 7.90MM
Materials & Finish
Tool Material Steel
