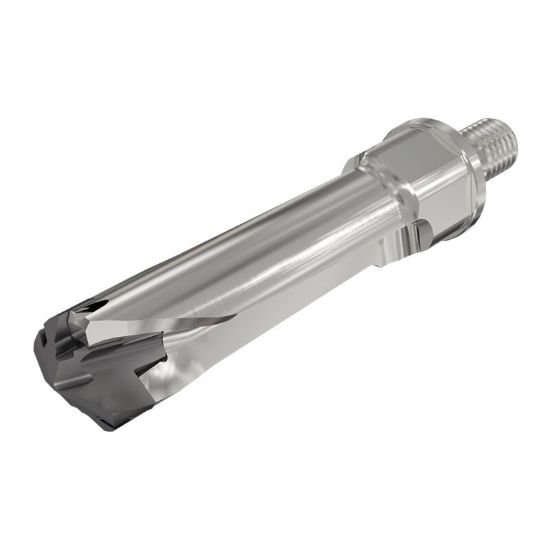

Picture of Iscar DCNM 180-054-M12-3D 0.709" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Iscar DCNM 180-054-M12-3D 0.709" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Part Number: ISC3352580 ISO: DCNM 180-054-M12-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112410
Vendor: Sussex Tool and Supply
$370.80
ISCAR 3352580 0.709" Modular SUMOCHAM Drill with FLEXFIT Connection for Multi-Spindle and Swiss-type Machines Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M12
Overall Length 4.1930 106.50MM
Coolant Thru Thru Coolant
Flutes/Inserts 1
Tool Dia 0.7087 18.00MM
Type Of Tool Drill
Flute Length 2.5390 64.49MM
Cut Dia Min 0.7087 18.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.7440 18.90MM
