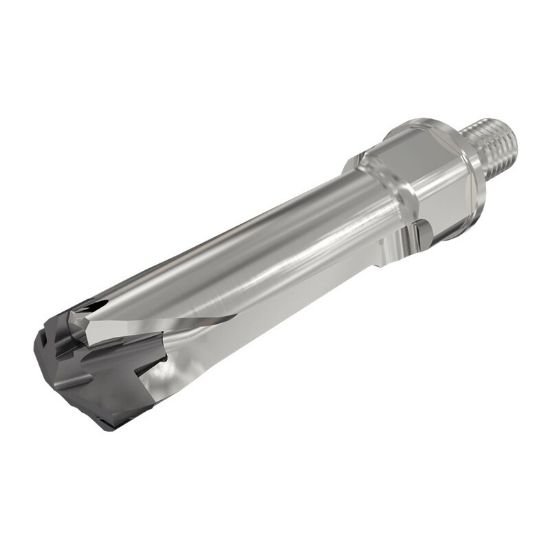

Picture of Iscar DCNM 140-042-M12-3D 0.551" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Iscar DCNM 140-042-M12-3D 0.551" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Part Number: ISC3352574 ISO: DCNM 140-042-M12-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112405
Vendor: Sussex Tool and Supply
$292.95
ISCAR 3352574 0.551" Modular SUMOCHAM Drill with FLEXFIT Connection for Multi-Spindle and Swiss-type Machines Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M12
Overall Length 3.6280 92.15MM
Coolant Thru Thru Coolant
Flutes/Inserts 1
Tool Dia 0.5512 14.00MM
Type Of Tool Drill
Flute Length 1.9760 50.19MM
Cut Dia Min 0.5512 14.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5670 14.40MM
