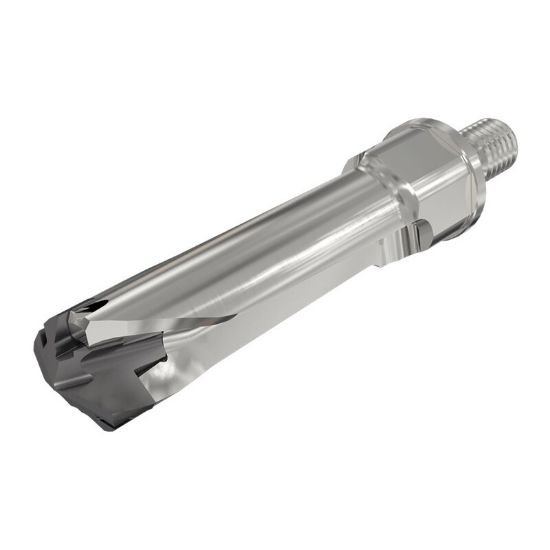

Picture of Iscar DCNM 130-039-M12-3D 0.512" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Iscar DCNM 130-039-M12-3D 0.512" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Part Number: ISC3352571 ISO: DCNM 130-039-M12-3D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112403
Vendor: Sussex Tool and Supply
$312.48

Description

ISCAR 3352571 0.512" Modular SUMOCHAM Drill with FLEXFIT Connection for Multi-Spindle and Swiss-type Machines Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.4880 88.60MM
Flutes/Inserts 1
Tool Dia 0.5118 13.00MM
Flute Length 1.8350 46.61MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.5118 13.00MM
Cut Dia Max 0.5280 13.41MM
Materials & Finish
Tool Material Steel
