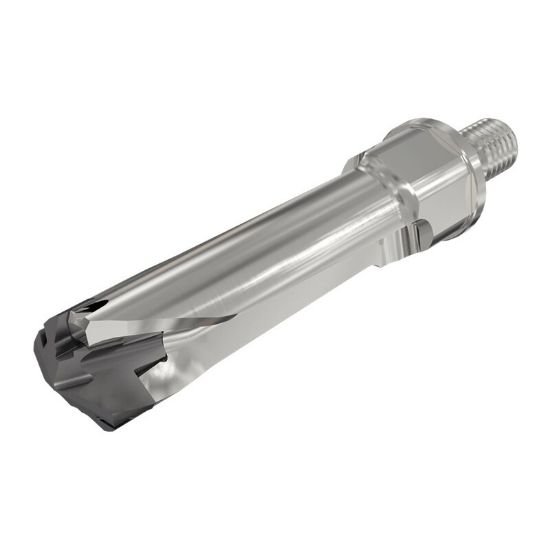

Picture of Iscar DCNM 125-037-M12-3D 0.492" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Iscar DCNM 125-037-M12-3D 0.492" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Part Number: ISC3352570 ISO: DCNM 125-037-M12-3D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112402
Vendor: Sussex Tool and Supply
$312.48

Description

ISCAR 3352570 0.492" Modular SUMOCHAM Drill with FLEXFIT Connection for Multi-Spindle and Swiss-type Machines Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.3860 86.00MM
Flutes/Inserts 1
Tool Dia 0.4921 12.50MM
Flute Length 1.7320 43.99MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.4921 12.50MM
Cut Dia Max 0.5080 12.90MM
Materials & Finish
Tool Material Steel
