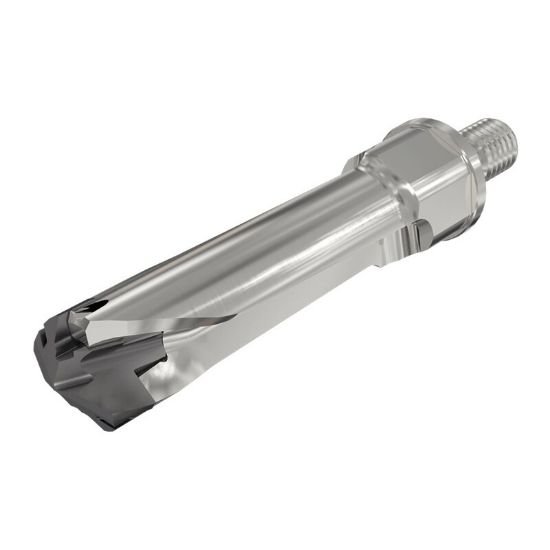

Picture of Iscar DCNM 105-032-M12-3D 0.413" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Iscar DCNM 105-032-M12-3D 0.413" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Part Number: ISC3352566 ISO: DCNM 105-032-M12-3D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112398
Vendor: Sussex Tool and Supply
$292.70

Description

ISCAR 3352566 0.413" Modular SUMOCHAM Drill with FLEXFIT Connection for Multi-Spindle and Swiss-type Machines Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.1570 80.19MM
Flutes/Inserts 1
Tool Dia 0.4133 10.50MM
Flute Length 1.5040 38.20MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.4133 10.50MM - Z
Cut Dia Max 0.4290 10.90MM
Materials & Finish
Tool Material Steel
