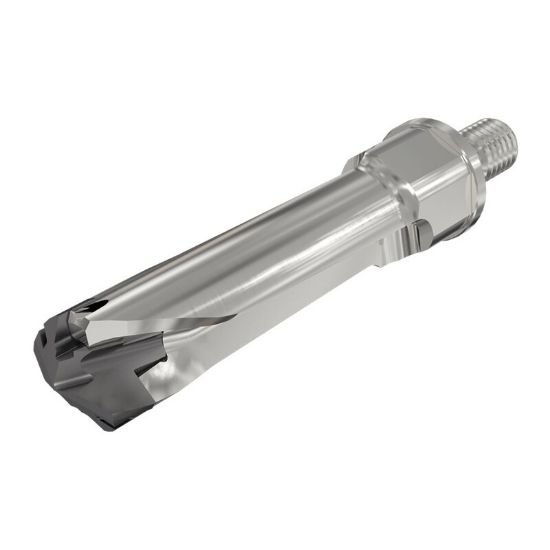

Picture of Iscar DCNM 100-030-M12-3D 0.394" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Iscar DCNM 100-030-M12-3D 0.394" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Part Number: ISC3352565 ISO: DCNM 100-030-M12-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112397
Vendor: Sussex Tool and Supply
$262.35
ISCAR 3352565 0.394" Modular SUMOCHAM Drill with FLEXFIT Connection for Multi-Spindle and Swiss-type Machines Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M12
Overall Length 3.0790 78.21MM
Coolant Thru Thru Coolant
Flutes/Inserts 1
Tool Dia 0.3937 10.00MM
Type Of Tool Drill
Flute Length 1.4250 36.20MM
Cut Dia Min 0.3937 10.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.4090 10.39MM
