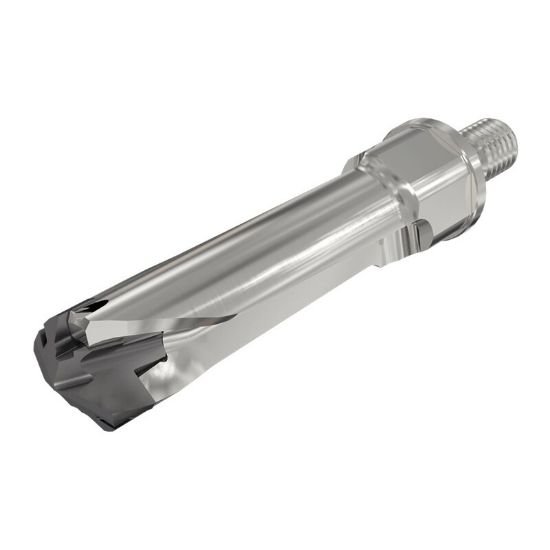

Picture of Iscar DCNM 080-024-M12-3D 0.315" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Iscar DCNM 080-024-M12-3D 0.315" Modular SUMOCham Drill with FlexFIT Connection for Multi-Spindle and Swiss-type Machines

Part Number: ISC3352560 ISO: DCNM 080-024-M12-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112393
Vendor: Sussex Tool and Supply
$241.93
ISCAR 3352560 0.315" Modular SUMOCHAM Drill with FLEXFIT Connection for Multi-Spindle and Swiss-type Machines Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M12
Overall Length 2.8110 71.40MM
Coolant Thru Thru Coolant
Flutes/Inserts 1
Tool Dia 0.3150 8.00MM
Type Of Tool Drill
Flute Length 1.1580 29.41MM
Cut Dia Min 0.3150 8.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3310 8.41MM
