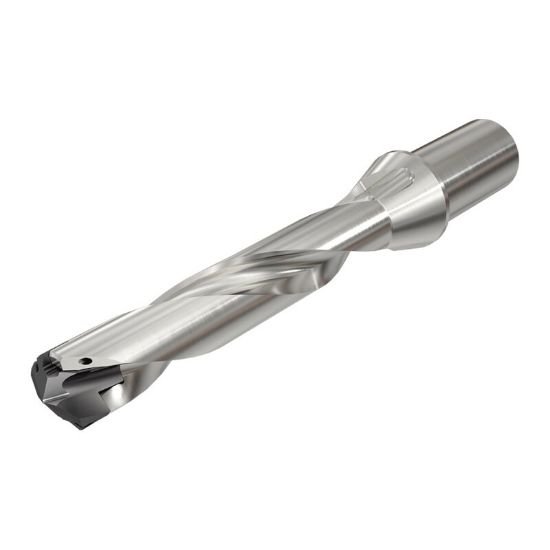

Picture of Iscar DCN0709-354-100N-5D 0.709" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Iscar DCN0709-354-100N-5D 0.709" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Part Number: ISC3202644 ISO: DCN0709-354-100N-5D ANSI:DCN0709-354-100N-5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111690
Vendor: Sussex Tool and Supply
$421.25

Description

ISCAR 3202644 0.709" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 6.8700 174.50MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.7087 18.00MM
Flute Length 3.6700 93.22MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.7087 18.00MM
Cut Dia Max 0.7440 18.90MM
Materials & Finish
Tool Material Steel
Standards & Identification
ISO Space DCN0709-354-100N-5D
