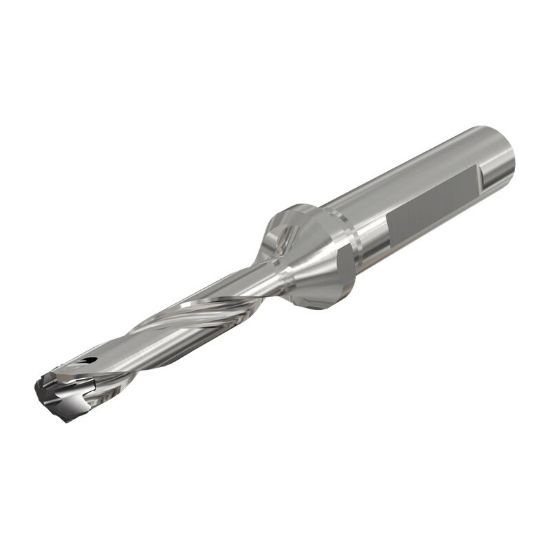

Picture of Iscar DCN 1260-630-125A-5D 1.26" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Iscar DCN 1260-630-125A-5D 1.26" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Part Number: ISC3203541 ISO: DCN 1260-630-125A-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111934
Vendor: Sussex Tool and Supply
$844.00
ISCAR 3203541 1.26" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 10.6400 270.26MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.2598 32.00MM
Type Of Tool Drill
Flute Length 6.5300 165.86MM
Cut Dia Min 1.2598 32.00MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.2950 32.89MM
