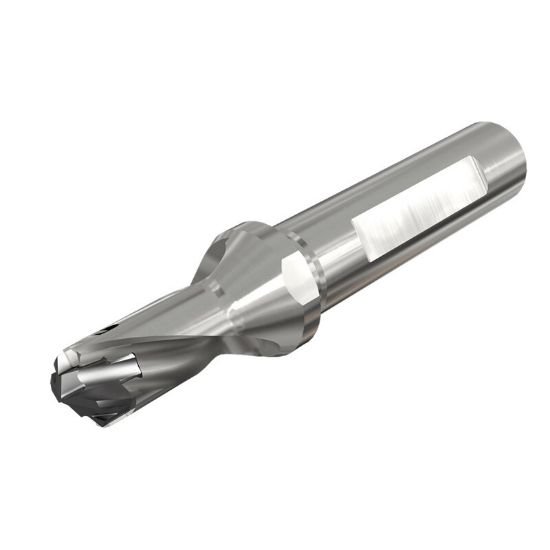

Picture of Iscar DCN 1260-189-150A-1.5D 1.26" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Iscar DCN 1260-189-150A-1.5D 1.26" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Part Number: ISC3203176 ISO: DCN 1260-189-150A-1.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111854
Vendor: Sussex Tool and Supply
$567.37
ISCAR 3203176 1.26" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.5000 38.10MM
Overall Length 6.6300 168.40MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 2
Tool Dia 1.2598 32.00MM
Type Of Tool Drill
Flute Length 2.1200 53.85MM
Cut Dia Min 1.2598 32.00MM
Dia Deep 1.5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.2950 32.89MM
