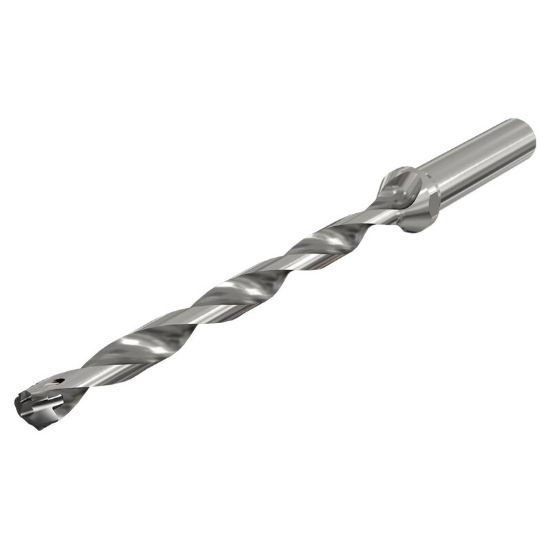

Picture of Iscar DCN 1260-1512-125R-12D 1.26" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD

Iscar DCN 1260-1512-125R-12D 1.26" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD

Part Number: ISC3260252

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112062
Vendor: Sussex Tool and Supply
$1,236.00
Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.2500 31.75MM - 1-1/4
Cutter Type Drill
Overall Length 20.3300 516.38MM
Machine Side (Toolpost) CYLINDRICAL1.2500
Cutting Edge Definition including cutting tools, Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, dies, and others., knives, hand tools
Type of Tool Drill
Machine Side (Toolpost) Connection Type Cylindrical
Flutes Or Inserts 2
Shipping State TEXAS
Type Indexable Drill Single Insert
Family Group Sumocham Chamdrill Line
Tool Material Steel
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Tool Diameter 1.2598 32.00MM
Cut Diameter Min 1.2598 32.00MM
Coolant Thru Thru Coolant
Cut Diameter Max 1.2960 32.92MM
Drill Type Indexable Drill
Made In USA No
Flute Length 15.3500 389.89MM
Diameter Deep 12.0x Dia
