  • ISCAR DCN 1220-976-125A-8D 1.22" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

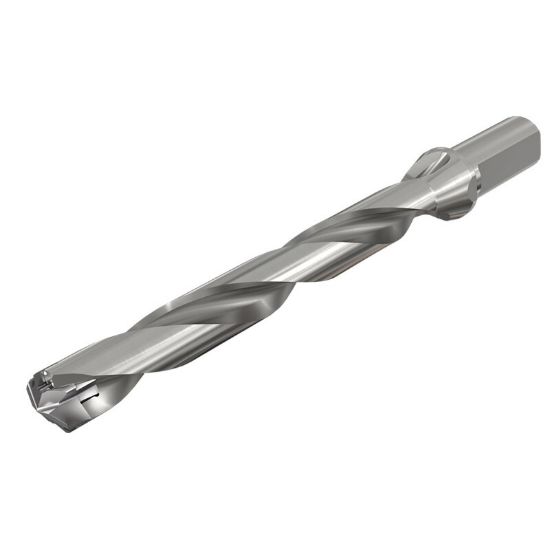

Picture of ISCAR DCN 1220-976-125A-8D 1.22" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

ISCAR DCN 1220-976-125A-8D 1.22" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

ISO: DCN 1220-976-125A-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3203167
Delivery date: 3-5 days
$1,010.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Sold by Pieces 1
Additional Key Information 2 Single Insert
Additional Key Information 1 Indexable Drill
Shipping State Texas
Additional Key Information 3 Drill
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Flutes/Inserts 2
Dia Deep 8.0XD
Cut Dia Min 1.2205 31.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Boring Bar,Weldon
Machine Side BBAR1.2500,WELDON1.2500
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flute Length 9.9800 253.49MM
Cutter Dia 1.2205 31.00MM
Cut Dia Max 1.2559 31.90MM
Overall Len 14.0500 356.87MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
