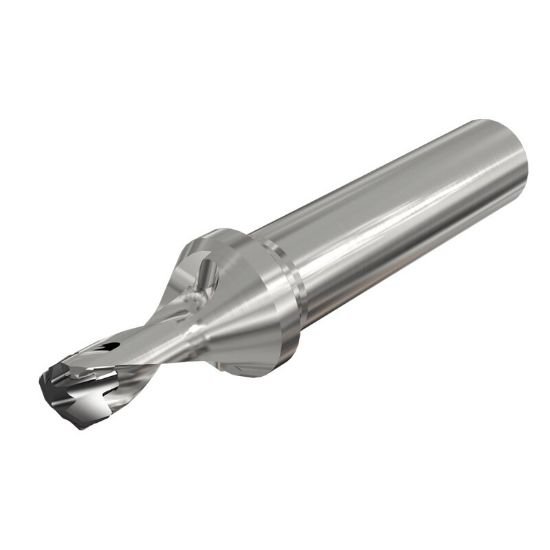

Picture of Iscar DCN 1220-183-125R-1.5D 1.22" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 1.5xD

Iscar DCN 1220-183-125R-1.5D 1.22" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 1.5xD

Part Number: ISC3203164 ISO: DCN 1220-183-125R-1.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111850
Vendor: Sussex Tool and Supply
$567.37
ISCAR 3203164 1.22" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.2500 31.75MM
Overall Length 6.1200 155.45MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.2205 31.00MM
Type Of Tool Drill
Flute Length 2.0500 52.07MM
Cut Dia Min 1.2205 31.00MM
Dia Deep 1.5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.2559 31.90MM
