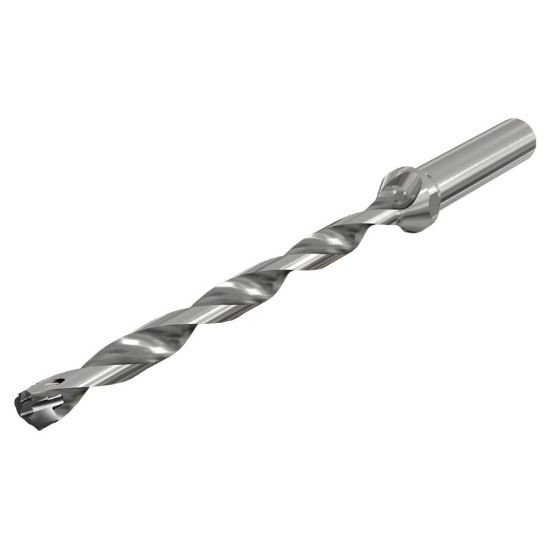

Picture of Iscar DCN 1181-1417-125R-12D 1.181" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD

Iscar DCN 1181-1417-125R-12D 1.181" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD

Part Number: ISC3260251 ISO: DCN 1181-1417-125R-12D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112061
Vendor: Sussex Tool and Supply
$1,179.65

Description

ISCAR 3260251 1.181" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 19.2700 489.46MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.1811 30.00MM
Flute Length 14.3900 365.51MM
Dia Deep 12.0x Dia
Performance & Capacity
Cut Dia Min 1.1811 30.00MM
Cut Dia Max 1.2160 30.89MM
Materials & Finish
Tool Material Steel
