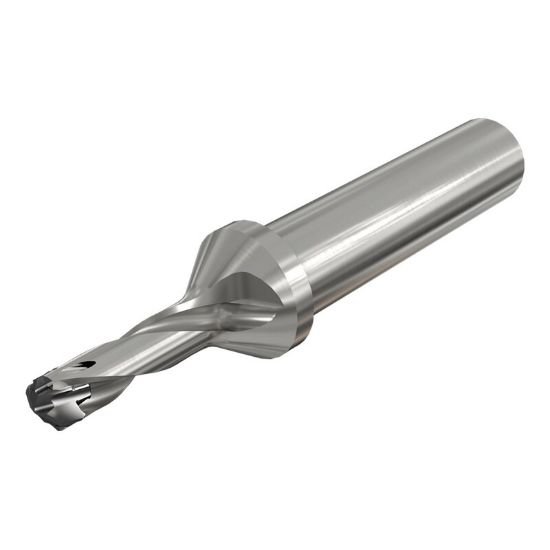

Picture of Iscar DCN 1142-342-125R-3D 1.142" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Iscar DCN 1142-342-125R-3D 1.142" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Part Number: ISC3203140 ISO: DCN 1142-342-125R-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111841
Vendor: Sussex Tool and Supply
$624.79
ISCAR 3203140 1.142" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.2500 31.75MM
Overall Length 7.5800 192.53MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.1417 29.00MM
Type Of Tool Drill
Flute Length 3.6300 92.20MM
Cut Dia Min 1.1417 29.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.1770 29.90MM
