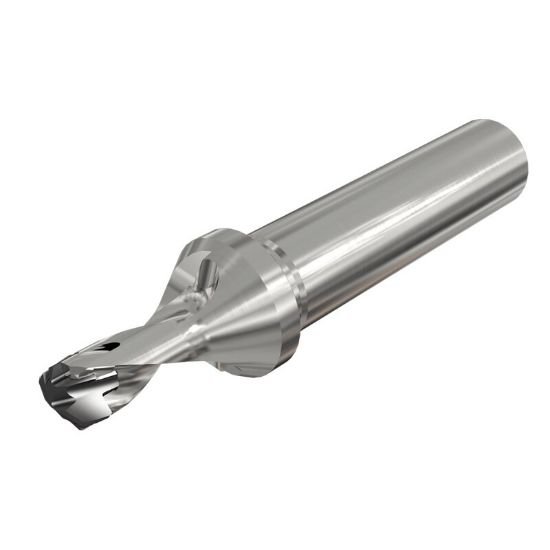

Picture of Iscar DCN 1102-166-125R-1.5D 1.102" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 1.5xD

Iscar DCN 1102-166-125R-1.5D 1.102" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 1.5xD

Part Number: ISC3203228 ISO: DCN 1102-166-125R-1.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111875
Vendor: Sussex Tool and Supply
$509.85
ISCAR 3203228 1.102" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.2500 31.75MM
Overall Length 5.7500 146.05MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.1024 28.00MM
Type Of Tool Drill
Flute Length 1.8600 47.24MM
Cut Dia Min 1.1024 28.00MM
Dia Deep 1.5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.1380 28.91MM
