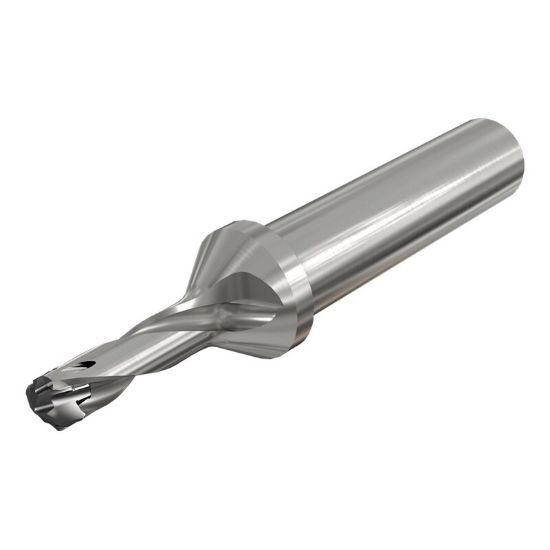

Picture of Iscar DCN 1063-319-125R-3D 1.063" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Iscar DCN 1063-319-125R-3D 1.063" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD

Part Number: ISC3203128 ISO: DCN 1063-319-125R-3D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111836
Vendor: Sussex Tool and Supply
$619.97

Description

ISCAR 3203128 1.063" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 7.2300 183.64MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.0630 27.00MM
Flute Length 3.3800 85.85MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 1.0630 27.00MM
Cut Dia Max 1.0980 27.89MM
Materials & Finish
Tool Material Steel
