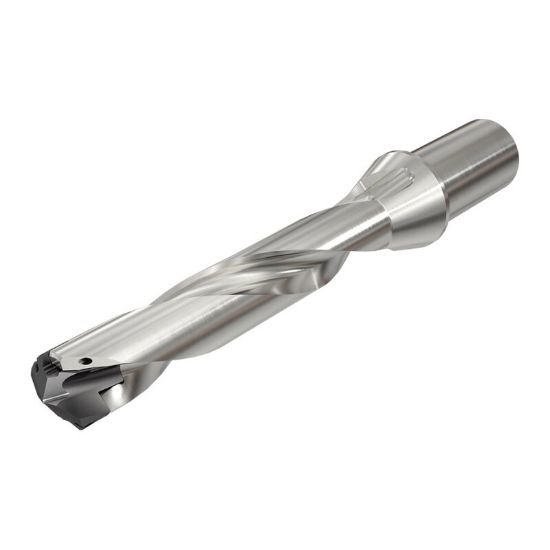

Picture of Iscar DCN 1024-512-125R-5D 1.024" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Iscar DCN 1024-512-125R-5D 1.024" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Part Number: ISC3260177 ISO: DCN 1024-512-125R-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112030
Vendor: Sussex Tool and Supply
$647.02
ISCAR 3260177 1.024" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 9.0900 230.89MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.0240 26.01MM
Type Of Tool Drill
Flute Length 5.3100 134.87MM
Cut Dia Min 1.0240 26.01MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.0590 26.90MM
