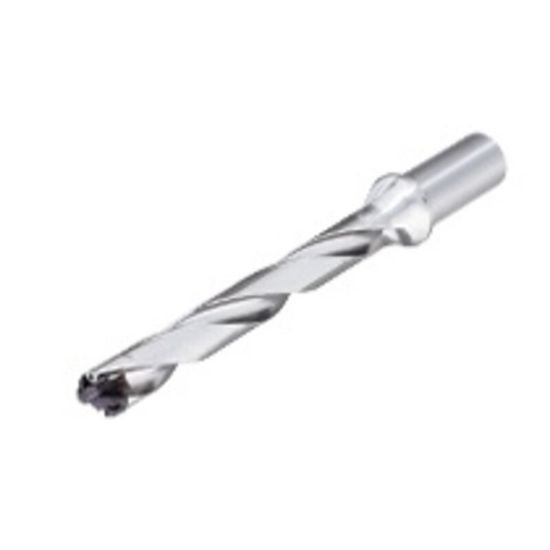

Picture of Iscar DCN 0984-787-125R-8D 0.984" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Iscar DCN 0984-787-125R-8D 0.984" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Part Number: ISC3202752 ISO: DCN 0984-787-125R-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111728
Vendor: Sussex Tool and Supply
$778.00
ISCAR 3202752 0.984" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.2500 31.75MM
Overall Length 11.7900 299.47MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 0.9844 25.00MM - 63/64
Type Of Tool Drill
Flute Length 8.0500 204.47MM
Cut Dia Min 0.9843 25.00MM - 63/64
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.0200 25.91MM
