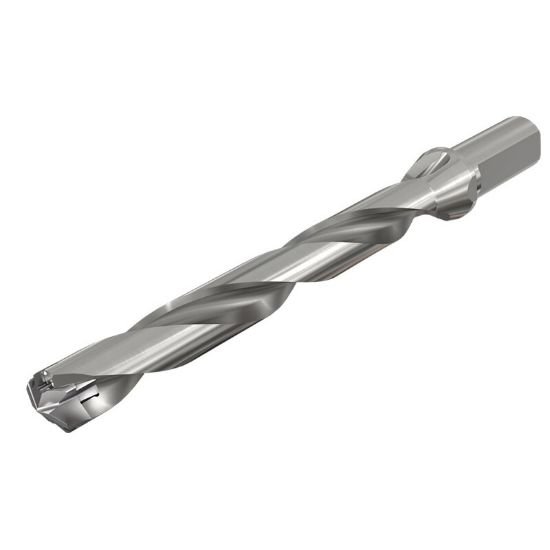

Picture of Iscar DCN 0984-787-125A-8D 0.984" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

Iscar DCN 0984-787-125A-8D 0.984" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

Part Number: ISC3202751

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111727
Vendor: Sussex Tool and Supply
$925.00
Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.2500 31.75MM - 1-1/4
Cutter Type Drill
Overall Length 11.7900 299.47MM
Machine Side (Toolpost) CYLINDRICAL1.2500
Cutting Edge Definition including cutting tools, Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, dies, and others., knives, hand tools
Type of Tool Drill
Machine Side (Toolpost) Connection Type Cylindrical
Flutes Or Inserts 2
Shipping State TEXAS
Type Indexable Drill Single Insert
Family Group Sumocham Chamdrill Line
Tool Material Steel
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Tool Diameter 0.9844 25.00MM - 63/64
Cut Diameter Min 0.9843 25.00MM
Coolant Thru Thru Coolant
Cut Diameter Max 1.0200 25.91MM
Drill Type Indexable Drill
Made In USA No
Flute Length 8.0500 204.47MM
Diameter Deep 8.0x Dia
