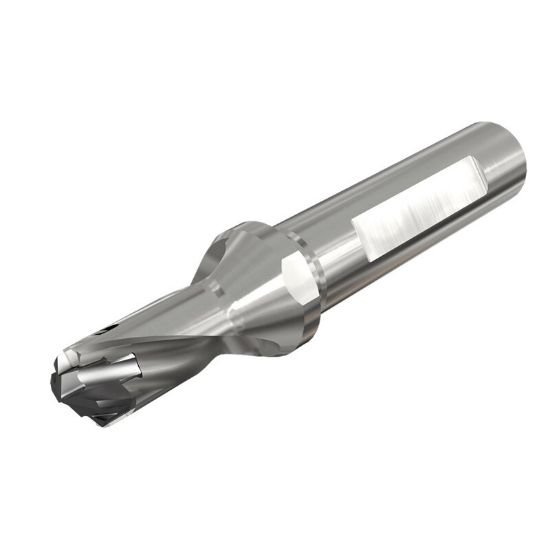

Picture of Iscar DCN 0906-138-125A-1.5D 0.906" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Iscar DCN 0906-138-125A-1.5D 0.906" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Part Number: ISC3202608 ISO: DCN 0906-138-125A-1.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111659
Vendor: Sussex Tool and Supply
$476.47
ISCAR 3202608 0.906" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 5.1500 130.81MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 0.9063 23.02MM - 29/32
Type Of Tool Drill
Flute Length 1.5500 39.37MM
Cut Dia Min 0.9062 23.02MM - 29/32
Dia Deep 1.5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.9410 23.90MM
