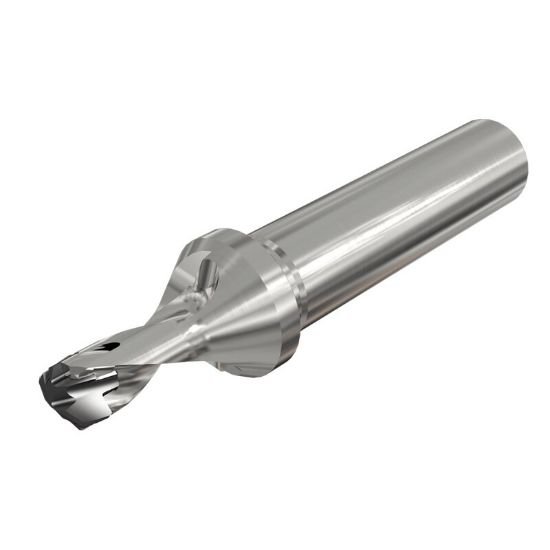

Picture of Iscar DCN 0866-130-100R-1.5D 0.866" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 1.5xD

Iscar DCN 0866-130-100R-1.5D 0.866" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 1.5xD

Part Number: ISC3202654 ISO: DCN 0866-130-100R-1.5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111697
Vendor: Sussex Tool and Supply
$415.30

Description

ISCAR 3202654 0.866" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 4.8700 123.70MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.8661 22.00MM
Flute Length 1.4600 37.08MM
Dia Deep 1.5.0x Dia
Performance & Capacity
Cut Dia Min 0.8661 22.00MM
Cut Dia Max 0.9020 22.91MM
Materials & Finish
Tool Material Steel
Only registered users can write reviews
