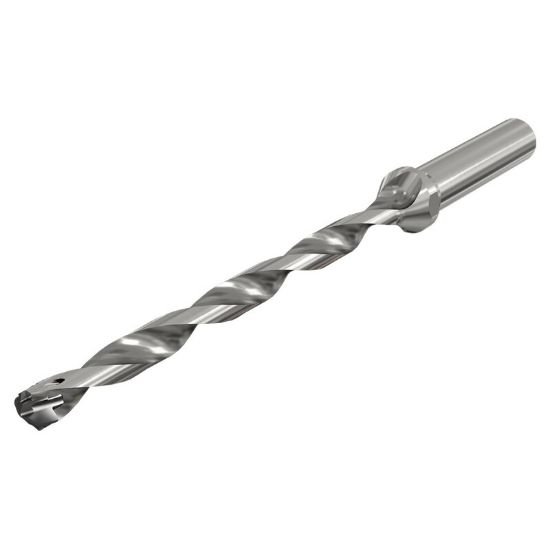

Picture of Iscar DCN 0827-992-100R-12D 0.827" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD

Iscar DCN 0827-992-100R-12D 0.827" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD

Part Number: ISC3202837 ISO: DCN 0827-992-100R-12D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111765
Vendor: Sussex Tool and Supply
$833.57

Description

ISCAR 3202837 0.827" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 13.4300 341.12MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.8268 21.00MM
Flute Length 10.0700 255.78MM
Dia Deep 12.0x Dia
Performance & Capacity
Cut Dia Min 0.8268 21.00MM
Cut Dia Max 0.8620 21.89MM
Materials & Finish
Tool Material Steel
