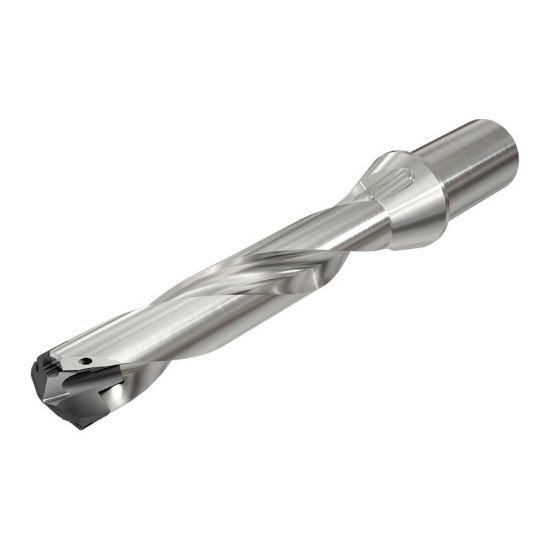

Picture of Iscar DCN 0827-413-100R-5D 0.827" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Iscar DCN 0827-413-100R-5D 0.827" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD

Part Number: ISC3202652 ISO: DCN 0827-413-100R-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111696
Vendor: Sussex Tool and Supply
$526.50
ISCAR 3202652 0.827" Indexable Head Drills with Coolant Holes and Cylindrical Shanks, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.0000 25.40MM
Overall Length 7.6400 194.06MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.8268 21.00MM
Type Of Tool Drill
Flute Length 4.2800 108.71MM
Cut Dia Min 0.8268 21.00MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.8620 21.89MM
