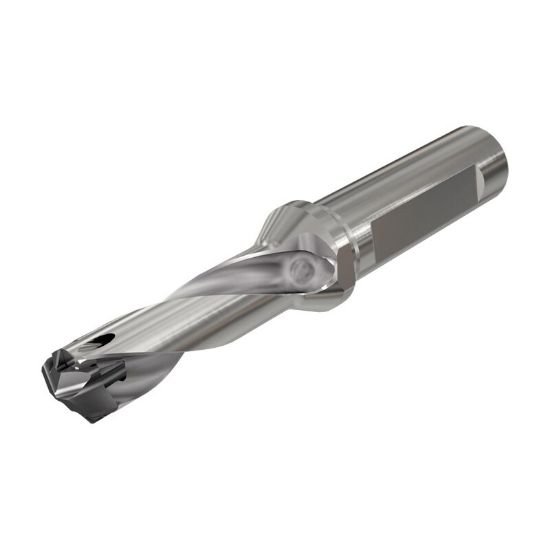

Picture of Iscar DCN 0827-248-100A-3D 0.827" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Iscar DCN 0827-248-100A-3D 0.827" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Part Number: ISC3260100 ISO: DCN 0827-248-100A-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112009
Vendor: Sussex Tool and Supply
$489.43
ISCAR 3260100 0.827" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 5.9900 152.15MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.8268 21.00MM
Type Of Tool Drill
Flute Length 2.6300 66.80MM
Cut Dia Min 0.8268 21.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.8620 21.89MM
