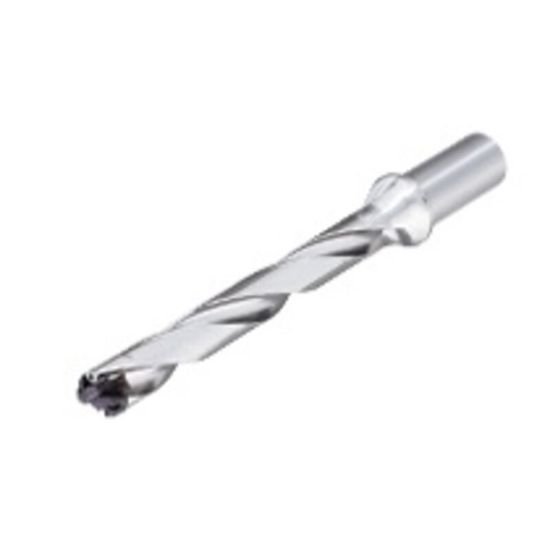

Picture of Iscar DCN 0787-630-100R-8D 0.787" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Iscar DCN 0787-630-100R-8D 0.787" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Part Number: ISC3202726 ISO: DCN 0787-630-100R-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111722
Vendor: Sussex Tool and Supply
$521.02
ISCAR 3202726 0.787" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.0000 25.40MM
Overall Length 9.7400 247.40MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.7874 20.00MM
Type Of Tool Drill
Flute Length 6.4400 163.58MM
Cut Dia Min 0.7874 20.00MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.8230 20.90MM
