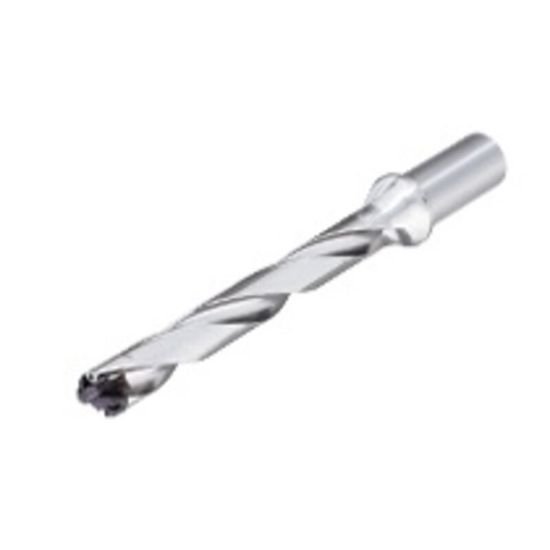

Picture of Iscar DCN 0748-598-100R-8D 0.748" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Iscar DCN 0748-598-100R-8D 0.748" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Part Number: ISC3202725 ISO: DCN 0748-598-100R-8D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111721
Vendor: Sussex Tool and Supply
$555.74

Description

ISCAR 3202725 0.748" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 9.3700 238.00MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.7480 19.00MM
Flute Length 6.1200 155.45MM
Dia Deep 8.0x Dia
Performance & Capacity
Cut Dia Min 0.7480 19.00MM
Cut Dia Max 0.7830 19.89MM
Materials & Finish
Tool Material Steel
