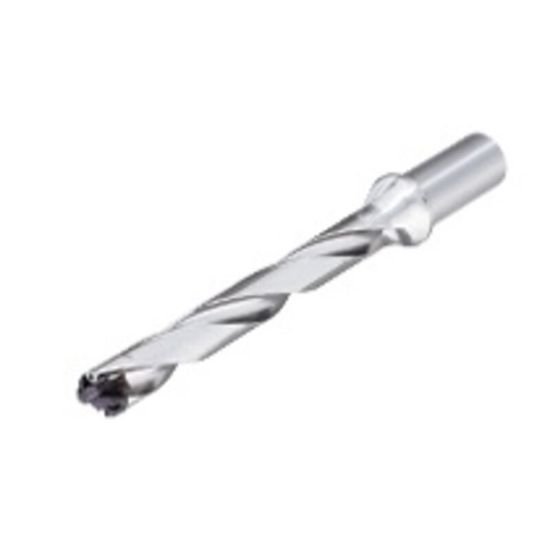

Picture of Iscar DCN 0669-535-075R-8D 0.669" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Iscar DCN 0669-535-075R-8D 0.669" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Part Number: ISC3202723 ISO: DCN 0669-535-075R-8D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111719
Vendor: Sussex Tool and Supply
$504.29

Description

ISCAR 3202723 0.669" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 8.3800 212.85MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.6693 17.00MM
Flute Length 5.4700 138.94MM
Dia Deep 8.0x Dia
Performance & Capacity
Cut Dia Min 0.6692 17.00MM
Cut Dia Max 0.7050 17.91MM
Materials & Finish
Tool Material Steel
