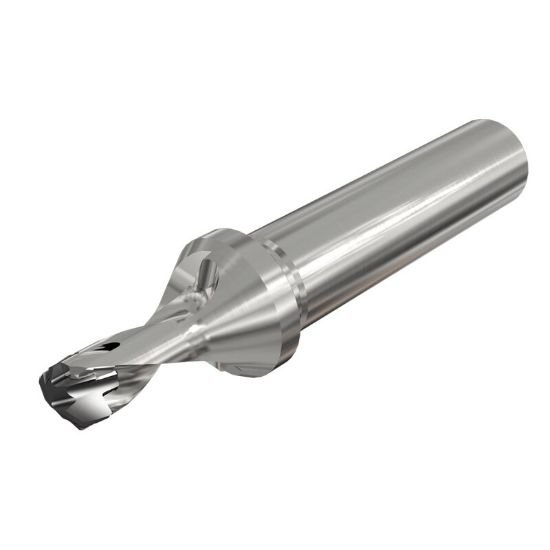

Picture of Iscar DCN 0630-095-075R-1.5D 0.63" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 1.5xD

Iscar DCN 0630-095-075R-1.5D 0.63" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 1.5xD

Part Number: ISC3202639 ISO: DCN 0630-095-075R-1.5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111685
Vendor: Sussex Tool and Supply
$264.00

Description

ISCAR 3202639 0.63" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.9100 99.31MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.6299 16.00MM
Flute Length 1.0700 27.18MM
Dia Deep 1.5.0x Dia
Performance & Capacity
Cut Dia Min 0.6299 16.00MM
Cut Dia Max 0.6650 16.89MM
Materials & Finish
Tool Material Steel
