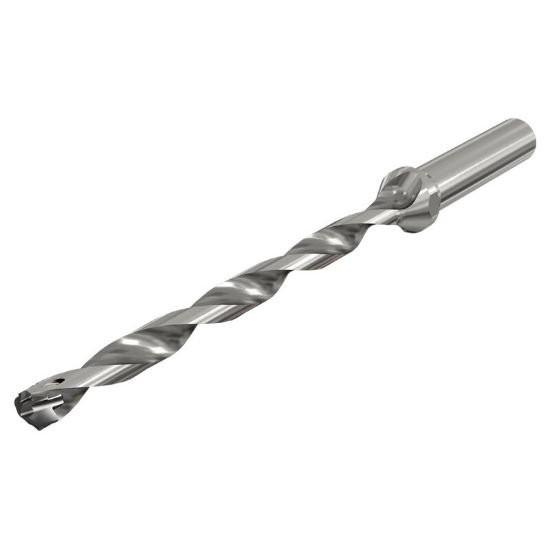

Picture of Iscar DCN 0591-709-075R-12D 0.591" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD

Iscar DCN 0591-709-075R-12D 0.591" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD

Part Number: ISC3202831 ISO: DCN 0591-709-075R-12D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111759
Vendor: Sussex Tool and Supply
$504.29

Description

ISCAR 3202831 0.591" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 12xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 9.9900 253.75MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.5906 15.00MM
Flute Length 7.2000 182.88MM
Dia Deep 12.0x Dia
Performance & Capacity
Cut Dia Min 0.5906 15.00MM
Cut Dia Max 0.6260 15.90MM
Materials & Finish
Tool Material Steel
