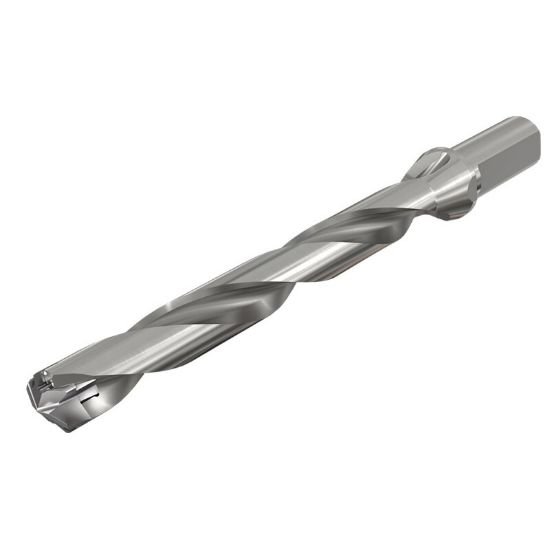

Picture of Iscar DCN 0571-457-063A-8D 0.571" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

Iscar DCN 0571-457-063A-8D 0.571" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

Part Number: ISC3203213 ISO: DCN 0571-457-063A-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111866
Vendor: Sussex Tool and Supply
$414.37
ISCAR 3203213 0.571" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 7.2500 184.15MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5709 14.50MM
Type Of Tool Drill
Flute Length 4.6700 118.62MM
Cut Dia Min 0.5709 14.50MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5870 14.91MM
