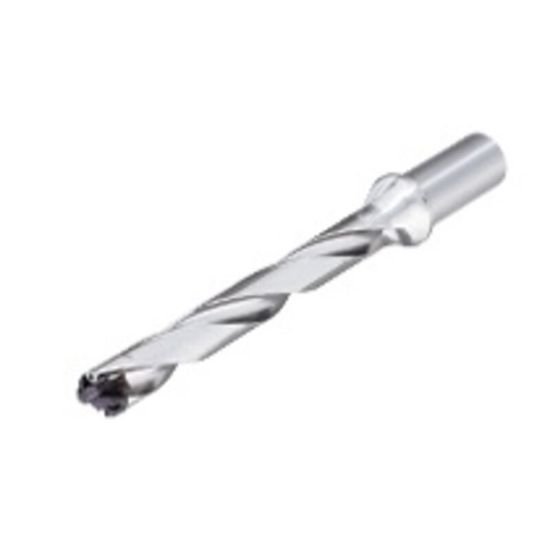

Picture of Iscar DCN 0551-441-063R-8D 0.551" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Iscar DCN 0551-441-063R-8D 0.551" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Part Number: ISC3202720 ISO: DCN 0551-441-063R-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111716
Vendor: Sussex Tool and Supply
$371.70
ISCAR 3202720 0.551" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.6250 15.88MM
Overall Length 7.0900 180.09MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5512 14.00MM
Type Of Tool Drill
Flute Length 4.5100 114.55MM
Cut Dia Min 0.5512 14.00MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5670 14.40MM
