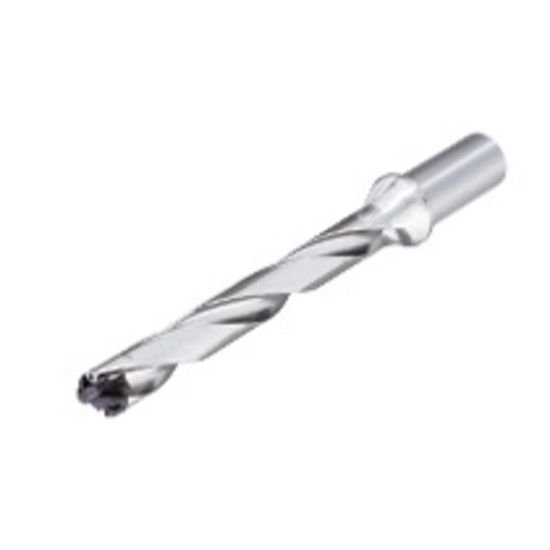

Picture of Iscar DCN 0531-425-063R-8D 0.531" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Iscar DCN 0531-425-063R-8D 0.531" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Part Number: ISC3203219 ISO: DCN 0531-425-063R-8D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111872
Vendor: Sussex Tool and Supply
$371.70
ISCAR 3203219 0.531" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.6250 15.88MM
Overall Length 6.8400 173.74MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5313 13.50MM - 17/32
Type Of Tool Drill
Flute Length 4.3500 110.49MM
Cut Dia Min 0.5315 13.50MM
Dia Deep 8.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5470 13.89MM
