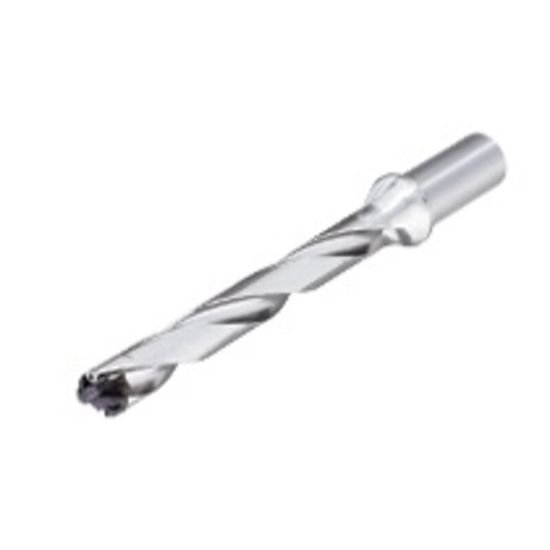

Picture of Iscar DCN 0472-378-063R-8D 0.472" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Iscar DCN 0472-378-063R-8D 0.472" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD

Part Number: ISC3202718 ISO: DCN 0472-378-063R-8D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111714
Vendor: Sussex Tool and Supply
$367.87

Description

ISCAR 3202718 0.472" Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 6.3400 161.04MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Flute Length 3.8700 98.30MM
Dia Deep 8.0x Dia
Performance & Capacity
Cut Dia Min 0.4724 12.00MM
Cut Dia Max 0.4880 12.40MM
Materials & Finish
Tool Material Steel
